Transparent Pool Wall Design Guide: Engineering Specifications for Luxury Projects
A transparent pool wall that fails doesn't just leak water—it destroys a project's reputation. We've seen $2M hotel pool renovations delayed 6 months because the wall specification underestimated live load requirements. Another developer spent $180,000 replacing a wall that cracked after 18 months because thermal expansion wasn't engineered into the support structure.
This guide covers what actually matters when specifying transparent pool walls—based on 150+ luxury hotel and residential projects and the engineering failures we see repeatedly.
Structural Design: What Loads Actually Matter

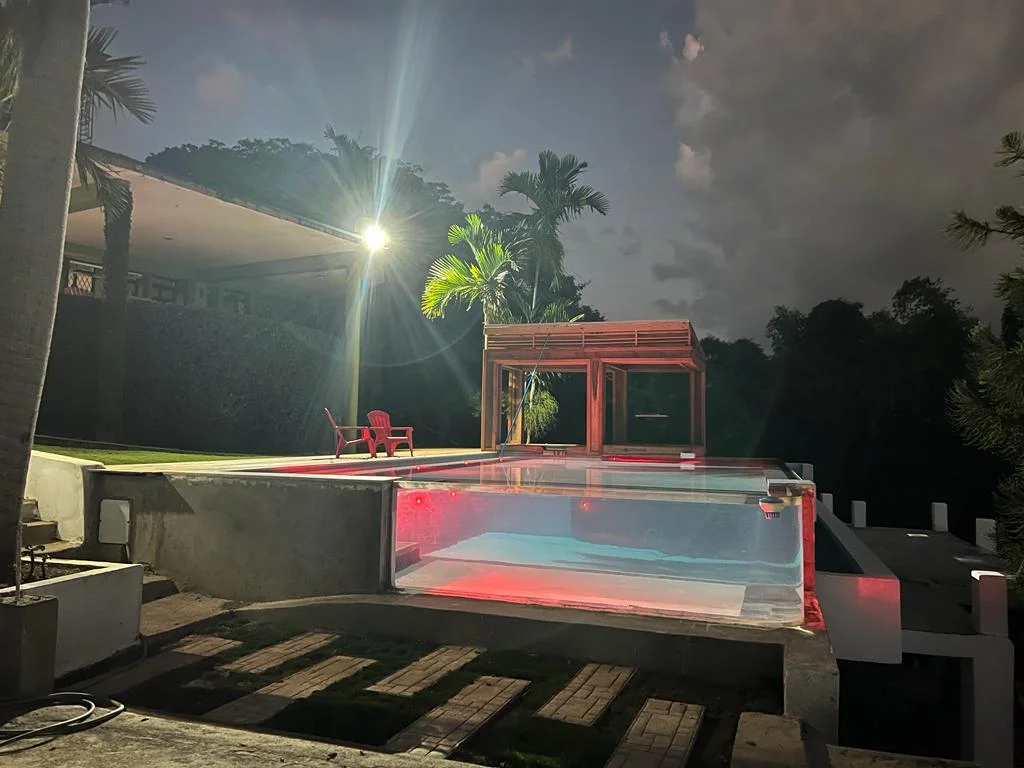

.webp)
Water Pressure Load
Hydrostatic pressure increases linearly with depth. At 3 meters depth, you're looking at 0.03 MPa—seems small, but sustained over years with temperature cycling, it tests material limits.
Critical insight: Pool walls see dynamic loading, not static. Wave action, swimmers pushing off, cleaning equipment bumping the surface. Your safety factor needs to account for fatigue, not just yield strength.
Live Load Considerations
Most specification errors happen here. The loads that break walls:
- Swimmer impact: 100-150 kg at 2-3 m/s during dive entries
- Wave action: 0.5-2 kPa in active pool areas
- Thermal stress: 7.0 × 10⁻⁵/°C expansion creates significant edge loads
- Chemical exposure: Chlorinated water degrades some seal materials
Project example: Maldives resort, 4.2m × 2.8m pool wall. Initial specification used 4.0 safety factor for static load only. After 14 months, stress cracking appeared at the lower corners. Root cause: combined thermal + wave loading exceeded design assumptions. Wall replacement cost: $95,000 plus 3-month closure.
Support Structure Requirements
The wall is only as good as what holds it. Critical requirements:
- Concrete frame deflection: Maximum L/500 under full load
- Flatness tolerance: ±2mm over the entire opening
- Thermal isolation: Separate structural frame from building to prevent differential expansion
We've rejected 30% of site surveys where the concrete opening didn't meet tolerance. Fixing it on-site costs 3× what proper forming would have cost.
Thickness Calculation: The Formula That Gets Used
Basic Thickness Formula
For rectangular panels with fixed edges:
t = √(q × a² × SF / σ)
Where:
- t = minimum thickness (mm)
- q = design pressure (MPa) = ρgh + live load
- a = shorter panel dimension (mm)
- σ = allowable stress (30 MPa for acrylic)
- SF = safety factor (minimum 4.0)
Reference Thickness Table
These are minimums based on actual project verification:
| Panel Size | Water Depth | Minimum Thickness | Typical Application |
|---|---|---|---|
| 2.0m × 1.5m | 1.2m | 60mm | Residential infinity pools |
| 2.5m × 2.0m | 1.5m | 80mm | Boutique hotel feature walls |
| 3.2m × 2.1m | 1.8m | 120mm | Resort pool viewing walls |
| 4.0m × 2.5m | 2.0m | 150mm | High-traffic commercial pools |
| 5.0m × 3.0m | 2.5m | 200mm | Large aquarium-style pools |
Critical: These assume proper edge support. Cantilevered sections require 1.5× thickness minimum.
Case Study: 3.2m × 2.1m × 150mm Project
Project: Bali luxury resort, cliff-edge infinity pool Specifications:
- Panel dimensions: 3,200mm × 2,100mm
- Water depth: 1.8m
- Thickness: 150mm
- Safety factor: 4.5
Design pressure calculation:
- Hydrostatic: 0.018 MPa (1.8m × 0.01 MPa/m)
- Live load: 0.005 MPa (wave + swimmer allowance)
- Total q: 0.023 MPa
Verification:
- Calculated minimum: 118mm
- Specified: 150mm (27% margin)
- Actual stress under load: 22 MPa (well below 30 MPa allowable)
Installation notes: Panel weight 2,400 kg. Required 8-point lifting rig. Installation tolerance achieved: ±1.5mm.
Performance: 4 years in service, zero deflection issues, clarity maintained at 90%+.
Installation Methods: Critical Details
Panel Handling
Acrylic pool panels are deceptively heavy. A 150mm thick panel weighs 180 kg/m².
Handling requirements:
- Minimum 4-point lifting for panels under 2m
- 6-point for 2-3m panels
- 8-point for panels over 3m
- Soft slings only—chains or wire rope damage edges
Common error: Using suction cups designed for glass. Acrylic has different surface energy; cups slip under load. We've seen panels dropped from inadequate lifting plans.
Mounting Systems
Wet-set method (most common):
- Panel positioned in opening
- Temporary supports hold alignment
- Marine-grade grout or epoxy poured around perimeter
- Curing time: 7-14 days depending on product
Mechanical clamp method:
- Stainless steel frame pre-installed
- Panel seated with EPDM gasket
- Compression plates torqued to specification
- Secondary seal applied
Thermal expansion accommodation:
- 5mm minimum gap per meter of panel width
- Flexible sealant in gap (polyurethane or silicone)
- No rigid contact between panel and structure
Seal System Design
We specify triple redundancy:
- Primary seal: EPDM compression gasket, 8mm thickness
- Secondary seal: Marine-grade polyurethane sealant
- Tertiary protection: Drainage channel with visible outlet
Specification detail: Gasket compression 20-30%. Over-compression damages acrylic; under-compression leaks.
Maintenance Requirements
Cleaning Protocol
Daily: Rinse with fresh water to remove chlorine residue Weekly: Soft cloth with mild detergent (pH 7-8) Monthly: Inspect seal integrity, check for calcium buildup Annually: Professional polish to remove minor scratches
Never use: Abrasive cleaners, ammonia-based products, pressure washers closer than 1m
Seal Inspection
Critical inspection points every 6 months:
- Gasket compression: Should maintain 20-30% deformation
- Sealant condition: No cracking, discoloration, or separation
- Drainage channels: Clear and flowing
- Edge condition: No stress crazing at mounting points
Replacement schedule: Primary gasket every 10 years; secondary sealant every 5-7 years.
Surface Maintenance
Acrylic scratches more easily than glass but repairs more easily too. Minor scratches (under 0.1mm depth) polish out. Deep scratches require professional resurfacing.
Expected service life: 20-30 years with proper maintenance. We've serviced walls installed in 2003 that still meet optical specifications.
Cost Benchmarks (2026)
Material Costs
| Thickness | Cost per m² | Notes |
|---|---|---|
| 60mm | $380-450 | Residential applications |
| 80mm | $520-620 | Small commercial |
| 120mm | $850-1,000 | Standard resort panels |
| 150mm | $1,200-1,400 | Large feature walls |
| 200mm | $1,800-2,200 | Specialty applications |
Price drivers: Optical grade requirements, UV stabilization, panel size (larger = premium), certification requirements.
Fabrication Costs
| Component | Typical Range |
|---|---|
| Cutting and edge finishing | $150-300/m of edge |
| Surface polishing | $80-150/m² |
| Drilling (if required) | $50-100 per hole |
| Quality documentation | $2,000-5,000 fixed |
Installation Costs
| Item | Typical Range | Notes |
|---|---|---|
| Rigging and lifting | $3,000-8,000 | Depends on panel size and access |
| Installation labor | $150-250/m² | Includes alignment and sealing |
| Seal system materials | $80-150/m | Gaskets, sealants, drainage |
| Testing and commissioning | $2,000-5,000 | Pressure test, documentation |
Total Project Cost Example
3.2m × 2.1m × 150mm wall (Bali case study):
| Line Item | Cost |
|---|---|
| Material (6.72 m² × $1,300) | $8,736 |
| Fabrication | $4,200 |
| Installation | $2,800 |
| Testing/QC | $3,500 |
| Shipping | $4,500 |
| Total | $23,736 |
Budget rule of thumb: $3,500-4,500 per m² for complete installed wall, including all engineering and testing.
Specification Checklist
Use this in your tender documents:
Material Requirements
- Cell-cast acrylic, optical grade
- Molecular weight >2,000,000 g/mol
- UV stabilized, 20-year warranty
- Light transmission >91%, haze <1%
- Yellow index <2 per ASTM E313
- Mill certification with batch testing
Structural Design
- Safety factor minimum 4.0 (fatigue considered)
- Live load allowance: 0.005 MPa minimum
- Thermal expansion: 5mm gap per meter
- Support structure deflection <L/500
- Concrete opening tolerance ±2mm
Fabrication Requirements
- Thickness tolerance ±3mm
- Surface finish: gloss both sides
- Edge finish: polished, no chips
- 12-point thickness verification
- Polarized light stress inspection
Installation Requirements
- Multi-point lifting plan (minimum 6-point for 2m+ panels)
- Temporary support until seal cure
- EPDM gasket, 8mm, Shore A 60-70
- Triple seal system specified
- Expansion joint at all edges
Testing and Documentation
- 1.5× design pressure test, 24 hours
- Thickness mapping report
- Material certificates
- Installation photos
- As-built drawings
- Maintenance manual
Common Specification Errors
-
Ignoring thermal expansion: Results in cracked panels within 2-3 years. Always specify expansion accommodation.
-
Insufficient safety factor: 2.0 SF works for glass; acrylic requires 4.0 minimum for fatigue loading.
-
Wrong material grade: Extruded sheet specified to save 15% cost. Fails within 18 months due to internal stress.
-
Missing live load: Static pressure only considered. Wave action and swimmer impact create 2-3× higher stress.
-
Poor edge support: Panel spans too far from mounting points. Creates stress concentration and cracking.
-
Inadequate seal design: Single-seal systems fail. We've replaced 8 walls in 3 years where single EPDM was specified.
-
Wrong cleaning specification: Abrasive cleaners damage surface. Specify pH-neutral only.
What We Need From You
To quote accurately and engineer properly:
- Panel dimensions: Width × height × water depth
- Support structure: Concrete dimensions and reinforcement
- Access constraints: Crane access, opening size, pathway width
- Installation timeline: Affects shipping method and staging
- Certification requirements: Third-party witness testing, PE stamp
- Environmental conditions: Temperature range, UV exposure, chemical treatment
Typical lead time: 10-14 weeks for custom panels. Rush orders possible with 30% premium.
